Neomill Compact

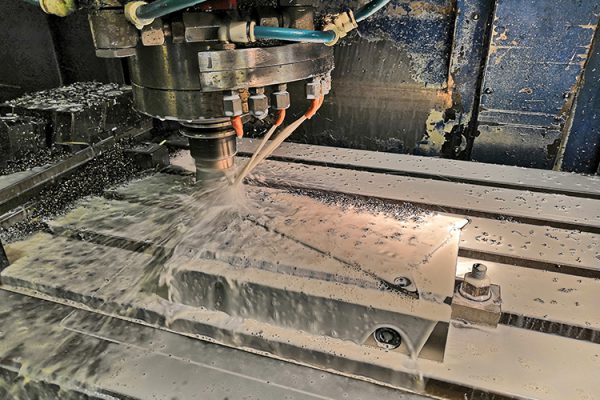

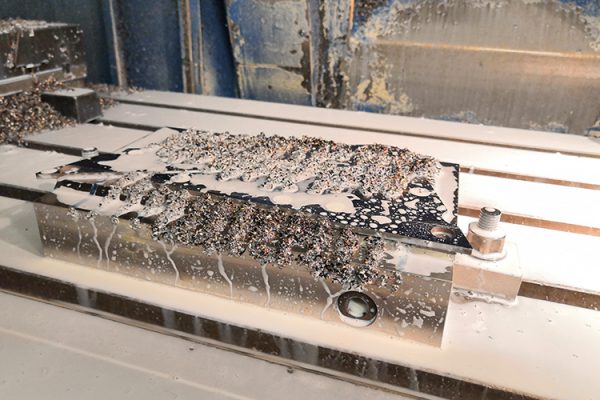

Milling, drilling, planning or heavy grinding. The Neomill magnetic chuck can be of use anywhere where really a high holding force and stability for clamping of relatively small workpieces are needed. This product is suitable for metal cutting operations with coolant.


Compact dimensions and a high holding force – 160 N/cm2
Long life span thanks to an unparalleled regrinding limit for the top plate up to 10 mm
Holding surface with uniform distribution of the magnetic force right up to the edges
Waterproof design

Detailed description:
Neomill Compact is a permanent magnetic chuck with a unique waterproof design.  The body (base) is made of durable and rigid material. The top plate is made of one piece of steel. Available in sizes 150 x 250mm (wxl) to 300 x 600mm (wxl) although other sizes may be available on request.

Important parameters:
Application: Milling
Technology: Permanent
Holding force: 160 N/cm2
Min. workpiece size: 25 x 25 x 6 mm
Poles: Transverse
Regrinding limit: 10 mm
Pole pitch: T15 11+4 mm – steel/epoxy resin
