Intended Use:

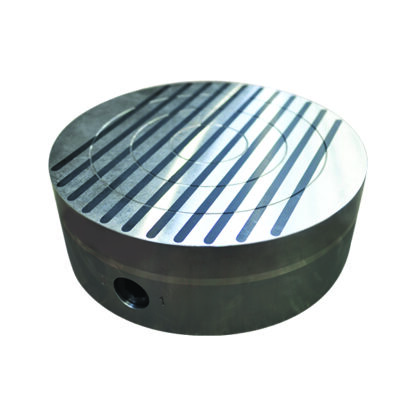

Permanent rotary chuck for turning and grinding


Nominal holding force 80 N/cm2

Neodymium magnetic system

Robust top plate, parallel pole division 8mm + 3mm epoxy resin

Life span (regrinding limit) 7mm

Solid steel body with robust actuating mechanism

Waterproof design

Range of sizes availabe

Model D (mm) H (mm) Weight
PERM130 130 63 6.5 kgs
PERM150 150 63 8 kgs
PERM160 160 63 8.5 kgs
