Vacuum Lifting for Glass – Clad Lift 1000

Description

The revolution in glass installation!

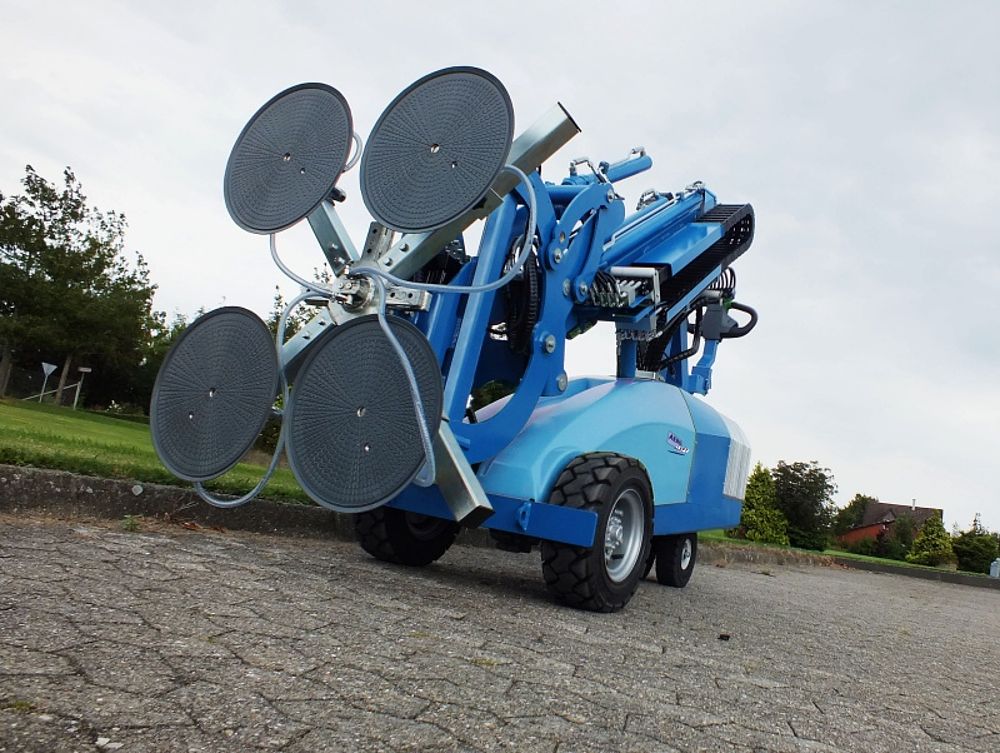

The CLAD-LIFT 1000 is designed to handle glass, windows, panels, doors or other elements up to 1000 kg in weight with great efficiency. This vacuum lifting device with hydraulic telescopic beam enables the operator to rotate the work piece 180 ° vertically and 180 ° horizontally via the hydraulic system.

The front driven Clad-Lift 1000 with its polyurethane foam filled wheels is extremely manoeuvrable, not only on levelled ground, but also off-terrain. The powerful, electro-hydraulic system has a step less speed control of all functions.
With the slim design of the device, passing doors is never a problem.

The CLAD-LIFT 1000 consists of the following modules:

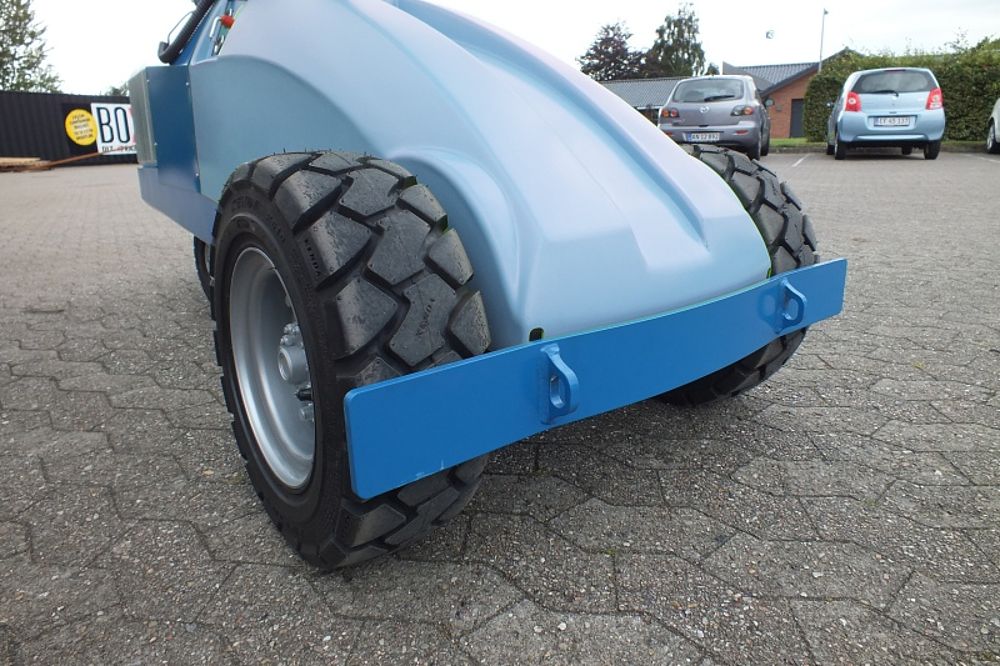

Powerful front-wheel drive ensures best handling, both indoors and outdoors.
Both front drive wheels are equipped with electronic brakes.

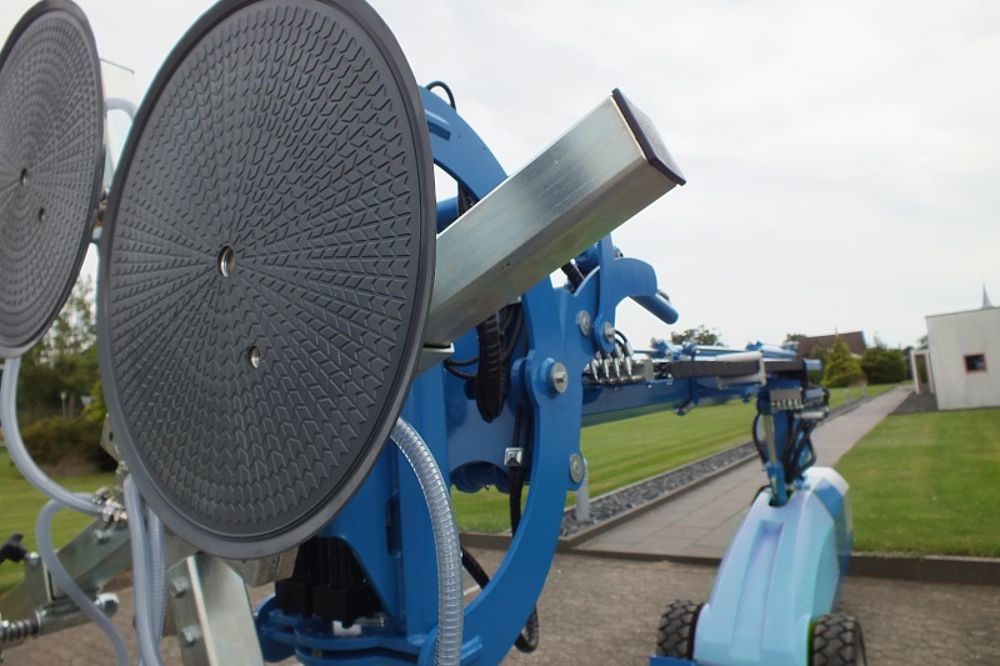

The vacuum pump with “Power Save”, ensures saving battery resources.
Sophisticated protection against overloading for maximum safety:
If 90% of the maximum load is reached, a red LED flashes on the control panel and a pulsing sound is heard. When 100% of the maximum load is reached, the red LED on the control panel lights up constantly and the acoustical signal sounds continuously.
In case of overloading, all hydraulic cylinders can operate in return only.;
Lifting arm can be tilted forward and backward with load and the work piece can be hydraulically turned 180°.

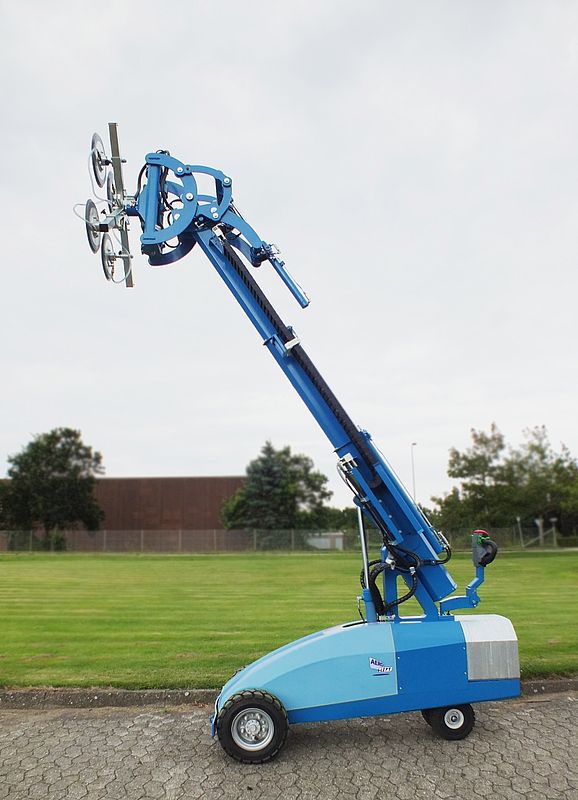

The lifting arm can be lifted with load approx. 4100 mm.
The tower function allows hydraulic lifting or lowering by 200 mm. The front can also be adjusted laterally 75 mm by hydraulic.
The telescopic extension of the lifting beam makes the fast and exact fitting of windows possible while the number of required staff is reduced.
The multi-way front on the lifting beam makes the load movable in all dimensions. The work piece can be turned 180 °. The front can be manually moved sideways, turn 90 ° to the right and left, and rotate 180°. This is made possible by the integrated 2-circuit vacuum rotation system.;
The gyro sensor offers more comfort and safety by automatically levelling ( so-called “tilting” ) the lifting beam. This means that the goods to be transported always remain securely in the vertical position.

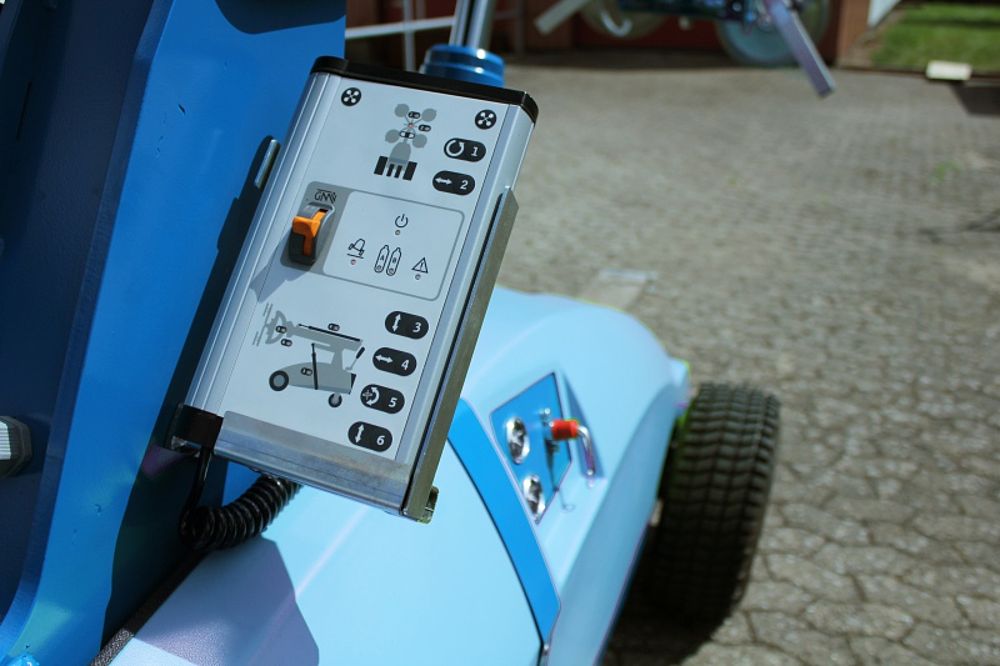

The multi-functional control panel is user-friendly designed and equipped with integrated function buttons and signal lamps. It is also provided with a spiral cable that enables the user to control the machine even when he is in the area of the work piece e.g. a window that has to be fitted etc. .
Driving is controlled by the ergonomic operator steering handle. This handle is provided with safety functions that meet even the most stringent safety standards. The emergency stop secures the operator against crushing hazard and the spring-loaded accelerator switch ensures that the machine immediately brakes if the handle is released .
Low-maintenance bearings and plain bearings ensure long life and low maintenance costs .
The integrated battery charger makes charging via a 230V socket possible anywhere anytime. The charging time is approximately 8 hours.



Technical data

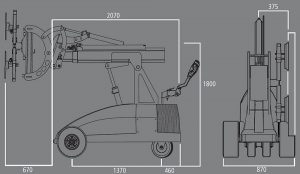

Article No. 1020169 Min. Extension 670 mm
Outer length: 2.070 mm Max. Extension 2.600 mm
Outer width: 870 mm Max. Height to the center of the lifting yoke: 4.100 mm
Max. Lifting capacity: 1000 kg Side Shift ( hydraulic ): 75 mm
Max. Load at maximum extension: 300 kg Tower fine adjustment ( hydraulic ): 200 mm
Total weight, including ballast weight: 1.800 kg Rotation ( hydraulic ): 180°
Total weight, without ballast weight: 1.340 kg Batteries: 2 x 150 Ah
Ballast weight: 470 kg
