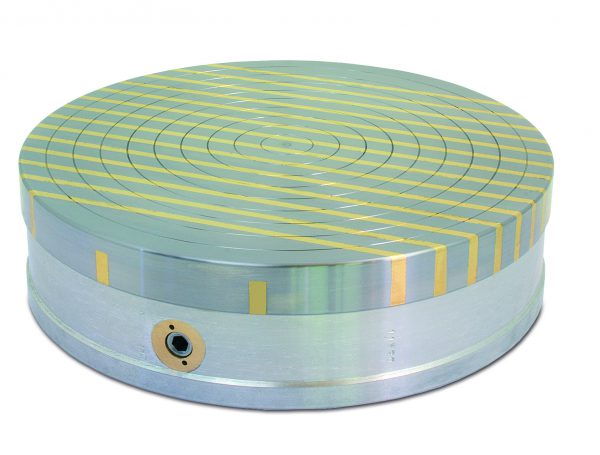

Neomicro Permanent Circular Chuck


Neomicro Permanent Magnetic Circular Chuck  with reinforced ceramic magnet system can be used for clamping bulky and heavy workpieces. The magnetic force is infinitely variable, in the surface incorporated centering grooves facilitate alignment of the workpiece. In the rake face, a centre hole can be introduced.



Ceramic magnet system, Aluminium body,
Max Pole pitch 5+8mm
Holding power 140N/cm²
Magnetic field height 8mm
Pole plate wearing limit 8mm
Switch travel MAG-ENT-MAG 500°


Super Strong circular chuck for turning, also for rough parts
