NEO600

Description

The only Magnet to safely lift thin plate. NEO600 = 6mm

Intended Use

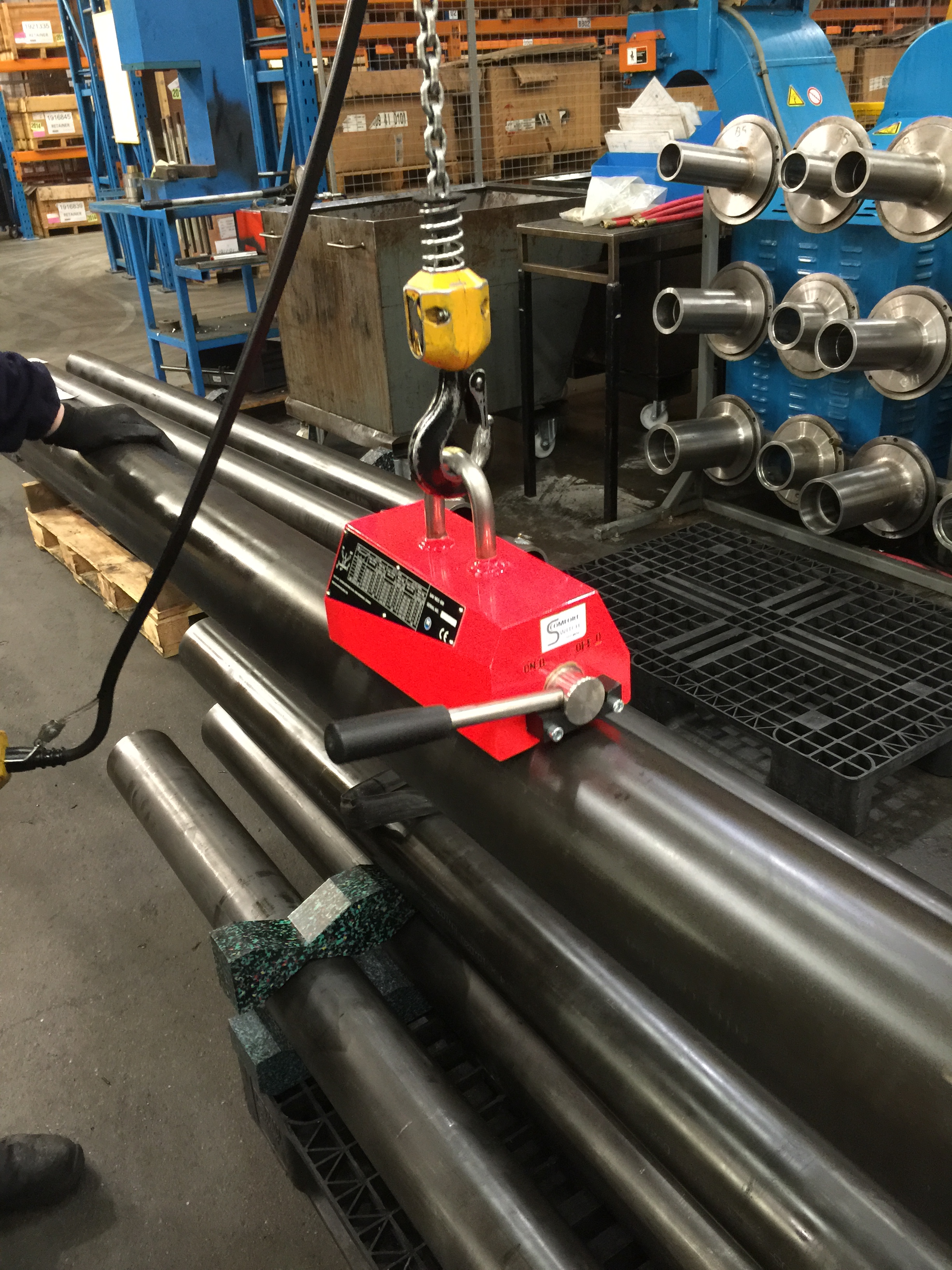

Permanent Lifting Magnet, suitable for flat or round material.

Features

Neodymium Magnetic System, Safe switching system, Robust and Solid Construction, Increased air gap capability, next day delivery. UK service and repair  and recalibration available. Training also available.

Applications

Permanent Lifting Magnets can be used for a wide range of applications.  This Range can lift up to 2000kgs.  This product the NEO600 has a recommended maximum lifting capacity: 600kg flat / 300kg round material.  The BUX Neo range is ideal for loading and unloading machine tools, handling bars and profiles in the warehouse and handling plates, blocks, bars, pipe and profiles in the workshop.  It is manufactured using a neodymium magnetic system, with a safe spring loaded system and strong and robust design.  These Magnets can be modified to create special design solutions to suit your application.

These Magnets are manufactured in Europe.  We hold a large stock of this range so next day delivery is available as well as service and repair and spare parts.  These magnets should be tested and re-certificated annually which can be done in our Leighton Buzzard service department or on site.  We can also offer on site training for your operators.

Reviews

There are no reviews yet.

Be the first to review “NEO600”
Nominal Lift Capacity* Dia Min / Max  65 / 270 mm
Flat Material  600 kgs Magnet footprint: Length & Width  246 mm / 120 mm
Round Material  300 kgs Height (to crane hook)  168 mm
Min Thickness  6 mm  Magnet Weight  19 kgs
