Vacuum Lifting for Glass – Clad Lift 600
The revolution in glass installation!

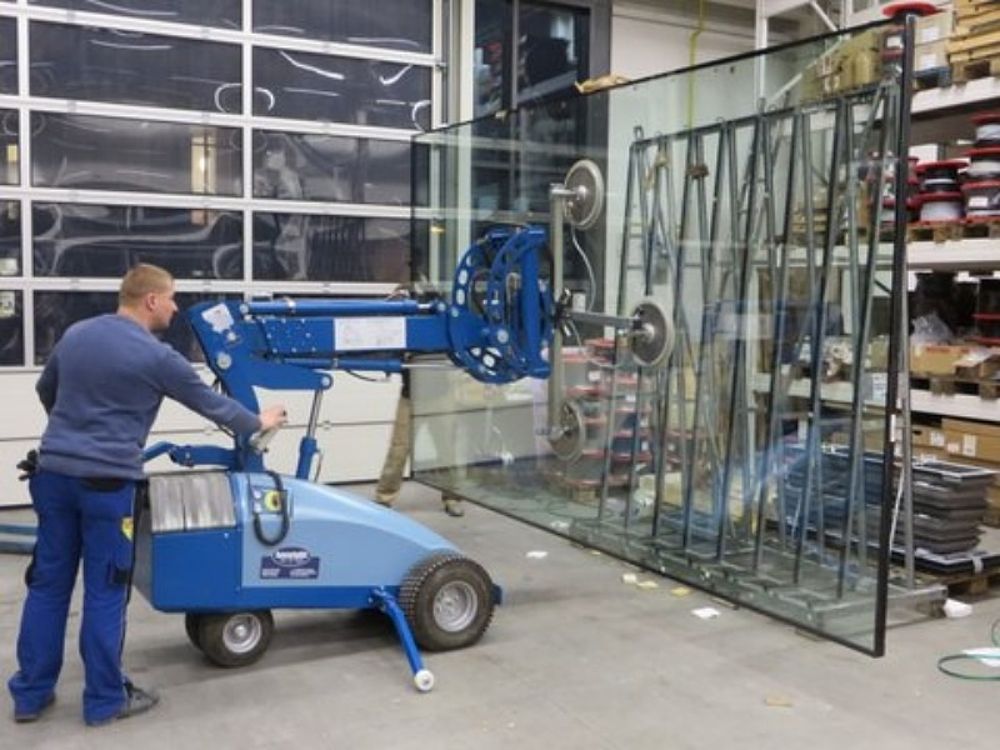

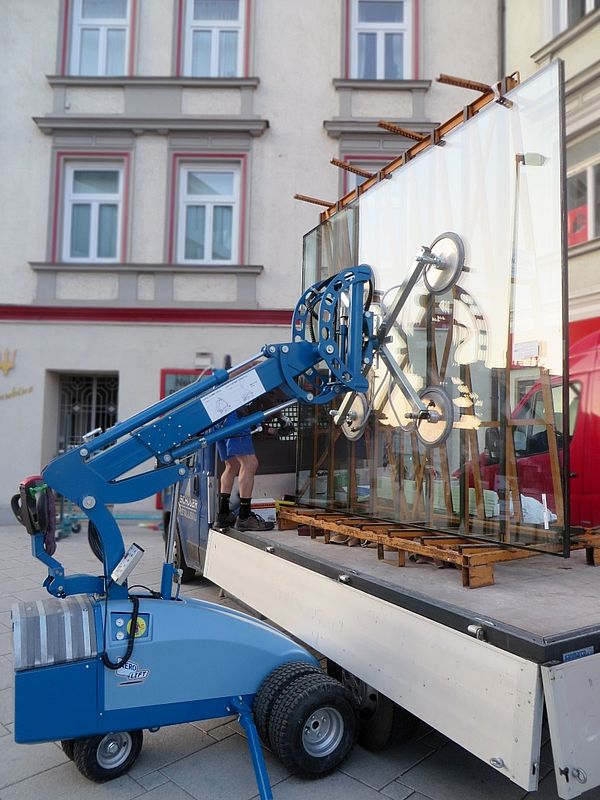

The CLAD-LIFT 600 is designed to handle glass, windows, panels, doors or other elements up to 600 kg in weight with great efficiency. This vacuum lifting device with hydraulic telescopic beam enables the operator to rotate the work piece by 360 ° vertical and 180 ° horizontal.

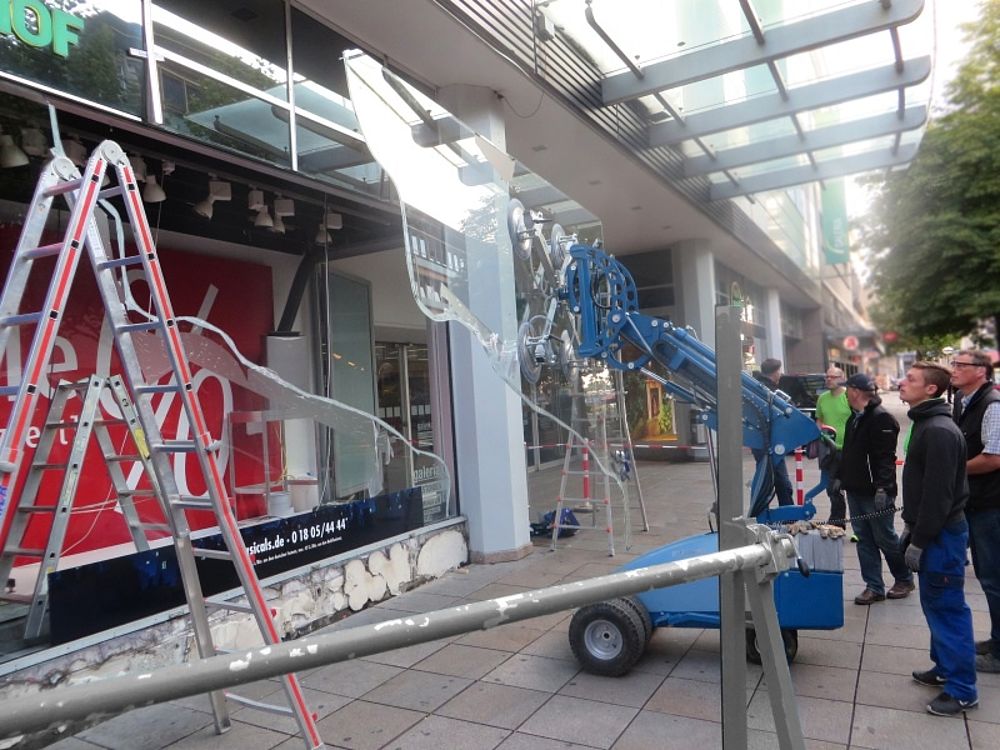

The front driven CLAD-LIFT 600 with its polyurethane foam filled wheels is extremely manoeuvrable, not only on levelled ground, but also off-terrain. The powerful, electro hydraulic system has a step less speed control of all functions.
With the slim design of the device, passing doors is never a problem.
The CLAD-LIFT 600 consists of the following modules:
Powerful front-wheel drive ensures best handling, both indoors and outdoors.
Both front drive wheels are equipped with electronic brakes.
The vacuum pump with “Power Save”, ensures saving battery resources.
Sophisticated protection against overloading for maximum safety:
If 90% of the maximum load is reached, a red LED flashes on the control panel and a pulsing sound is heard. When 100% of the maximum load is reached, the red LED on the control panel lights up constantly and the acoustical signal sounds continuously.
In case of overloading, all hydraulic cylinders can operate in return only.
Lifting arm with manual, horizontal adjustment ( up to 90 mm ) for the precise positioning of the work piece.
The lifting beam can be up-lifted with load to approx. 2800 mm.
The tower function allows hydraulic lifting or lowering by 190 mm.
The telescopic extension of the lifting beam makes the fast and exact fitting of windows possible while the number of required staff is reduced.
The multi-way front on the lifting beam makes the load movable in all dimensions. The work piece can be turned 180 °. The front can be manually moved sideways, turn 90° to the right and left, and rotate 360 ° endlessly. This is made possible by the integrated 2-circuit vacuum rotation system.
The multifunctional control panel is user-friendly designed and equipped with integrated function buttons and signal lamps. It is also provided with a spiral cable that enables the user to control the machine even when he is in the area of the workpiece e.g. a window that has to be fitted etc. .
Driving is controlled by the ergonomic operator steering handle. This handle ist provided with safety functions that meet even the most stringent safety standards. The emergency stop secures the operator against crushing hazard and the spring-loaded accelerator switch ensures that the machine immediately brakes if the handle is released .
Low-maintenance bearings and plain bearings ensure long life and low maintenance costs .
The integrated battery charger makes charging via a 230V socket possible anywhere anytime. The charging time is approximately 8 hours.

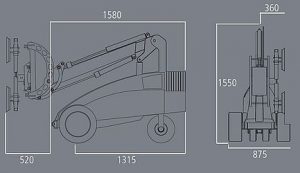

|Article No.||1016053||Min. Extension||875 mm|
|Outer length:||1.580 mm||Max. Extension||1.565 mm|
|Outer width:||875 mm||Max. Height to center of lifting yoke:||2.800 mm|
|Max. Lifting capacity:||600 kg||Side shift ( manual ):||90 mm|
|Max. Load at maximum extension:||300 kg||Tower fine adjustment ( hydraulic ):||190 mm|
|Weight including ballast weight:||1060 kg||Rotation:||360°|
|Weight without ballast weight:||865 kg||Suction plates:||4 x Ø 350 mm|
|Ballast weight:||13 x 15 kg||Batteries:||2 x 95 Ah|
