Aero Standard – Turning 180°

Description

Vacuum lifter for turning by 180° – for airtight plate materials

Wood and furniture industry • sheet metal industry • sheet metal • covered wooden plates • plastic plates • glass panes

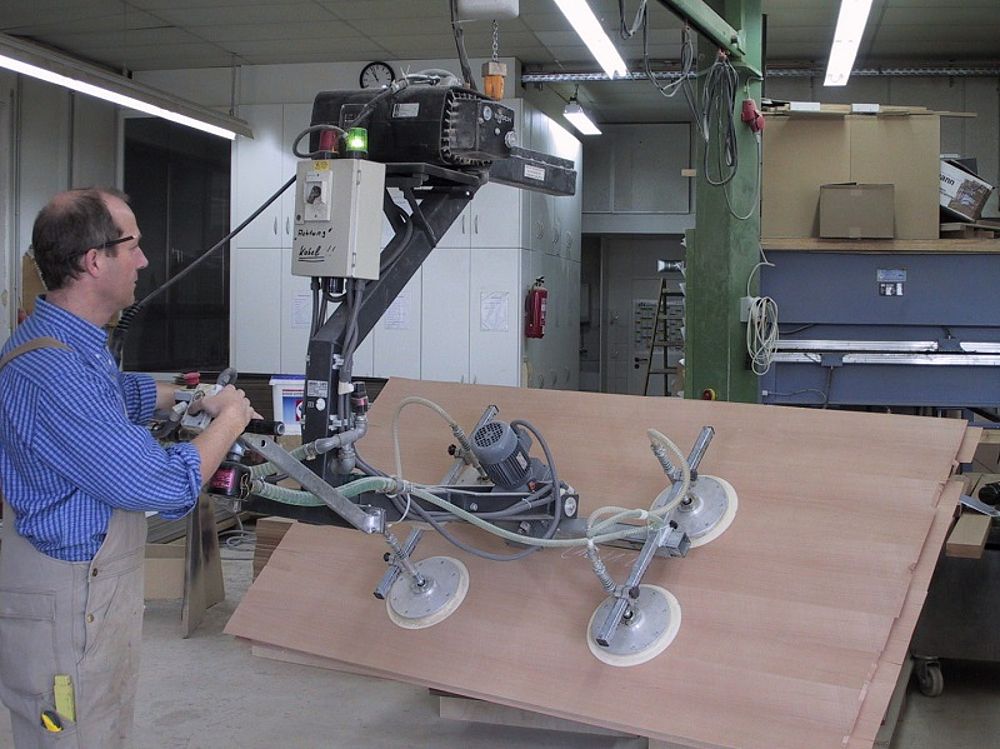

Our 180° turn able vacuum lifters are ideal, for instance, for being able to paint both sides of metal panels. The load can be variably swivelled manually or using an electric motor and comfortably transported in one step to be processed on the front and back.

Functionality

Reversible lifts allow the machining from two sides. You can easily swivel the transported material to 180° with the turning vacuum lifter. No matter whether you have to check both sides of a board for damage in quality control or whether veneer has to be applied to both sides of wooden boards, the AERO-LIFT turning devices make working with the electric swivel motor child’s play. Plates and sheets weighing several hundred kilos can be turned 180° with the turning crosshead at the push of a button without any effort.

Description Article Number Carrying Capacity Main Beam L Cross Beam B Suction Plate quantity / dia
AERO  125/4R-180° 1030745 125 kg 1800 mm 1000 mm 4 / 210 mm
AERO  125/4R-180° 1030746 125 kg 3000 mm 1000 mm 4 / 210 mm
AERO  125/4R-180° 1030747 125 kg 2200 mm 1000 mm 4 / 250 mm
AERO  125/12R-180° 1030748 125 kg 2200 mm 1000 mm 12 / 110 mm
AERO  125/8R-180° 1030749 125 kg 2200 mm 1000 mm 8 / 160 mm
AERO  125/8R-180° 1030750 125 kg 1800 mm 1000 mm 8 / 160 mm
AERO  125/8R-180° 1030751 125 kg 3000 mm 1000 mm 8 / 160 mm
AERO  125/12R-180° 1030752 125 kg 3000 mm 1000 mm 12 / 110 mm
AERO  125/12R-180° 1030753 125 kg 3000 mm 1000 mm 12 / 120 mm
AERO 250/4R-180° 1030754 250 kg 2200 mm 1000 mm 4 / 270 mm
AERO 250/4R-180° 1030755 250 kg 1800 mm 1000 mm 4 / 270 mm
AERO 250/4R-180° 1030756 250 kg 3000 mm 1000 mm 4 / 270 mm
AERO 250/4R-180° 1030757 250 kg 2200 mm 1000 mm 4 / 250 mm
AERO 250/12R-180° 1030758 250 kg 2200 mm 1000 mm 12 / 160 mm
AERO 250/8R-180° 1030759 250 kg 2200 mm 1000 mm 8 / 210 mm
AERO 250/8R-180° 1030760 250 kg 1800 mm 1000 mm 8 / 210 mm
AERO 250/8R-180° 1030761 250 kg 3000 mm 1000 mm 8 / 210 mm
AERO 250/8R-180° 1030762 250 kg 2200 mm 1000 mm 8 / 160 mm
