Telsa Meter

Telsa Meter

Description

Intended Use

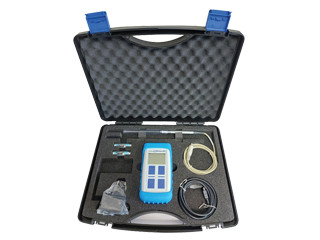

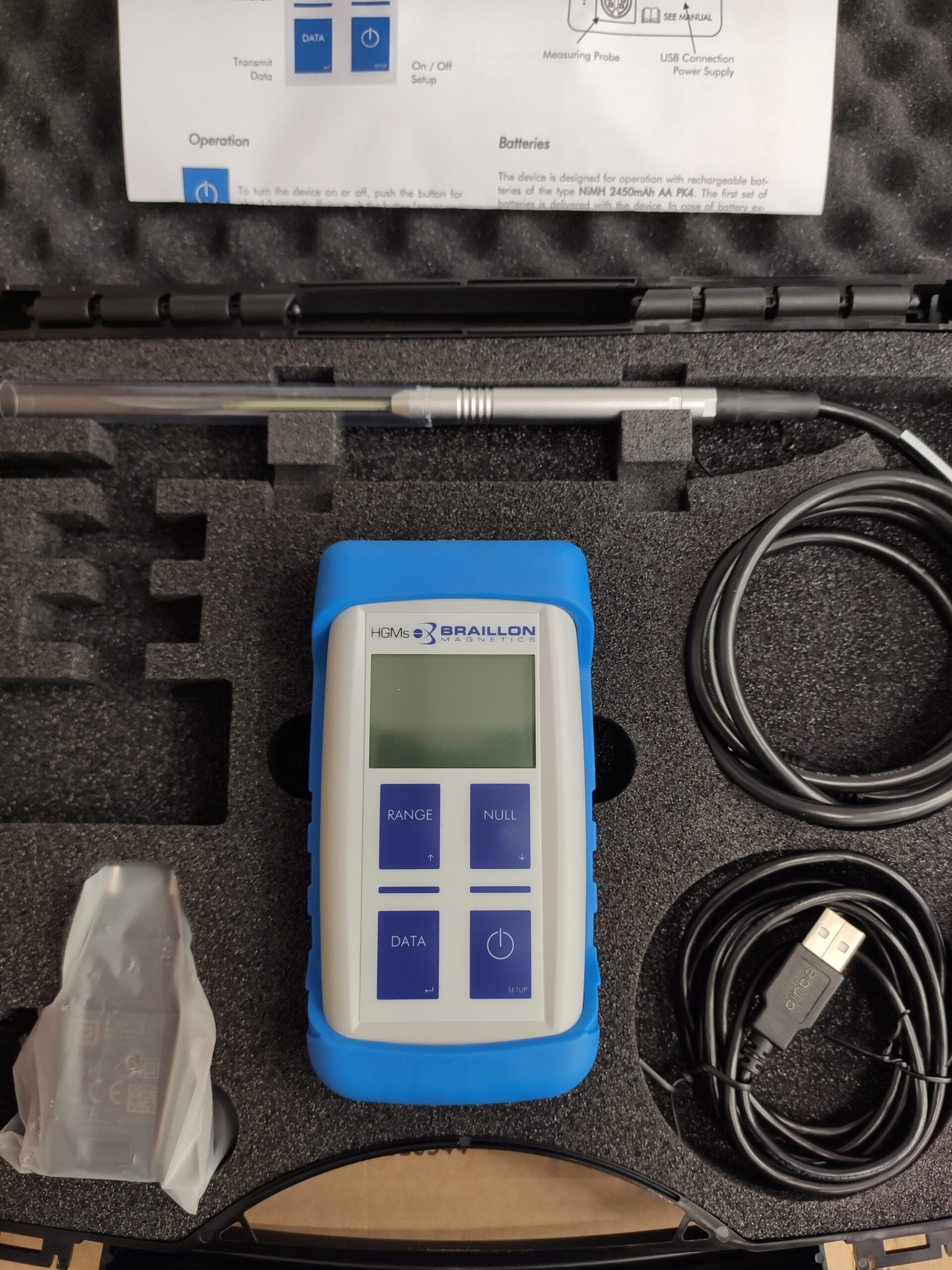

The TESLA meter is a practical, handy type Gaussmeter having digital display that has been developed based on long experience and achievements in the manufacture of magnetism-applied products.
From the user point of view, this meter is designed for easy use by anyone by incorporating frequently used functions only.
The external output terminal is also provided to enable digital or analog outputs. Further, the probe has been made smaller for measurement in smaller space.

Features

A wide range of measuring range from 0 to 3000 mT (0 to 30,000 G). (DC)
The battery life has been increased by about 30%.
The rigidity of the probe has been increased.
The meter can be operated with a chargeable battery also.
By connecting an optional cable (TM-601DTC) to the external output terminal, digital (analog possible) data can be transferred to a PC.

Measuring: mT/G selection
Range: 0-30,000G
Display: LCD
Operating Temp: 0-+/-40C
Power source: Battery SUM-3 (1.5v) x 4 pieces
Size: 140mmH x 64mmW x 30mmD
Weight: 250g
Options: Digital output cable and axial probe

Applications

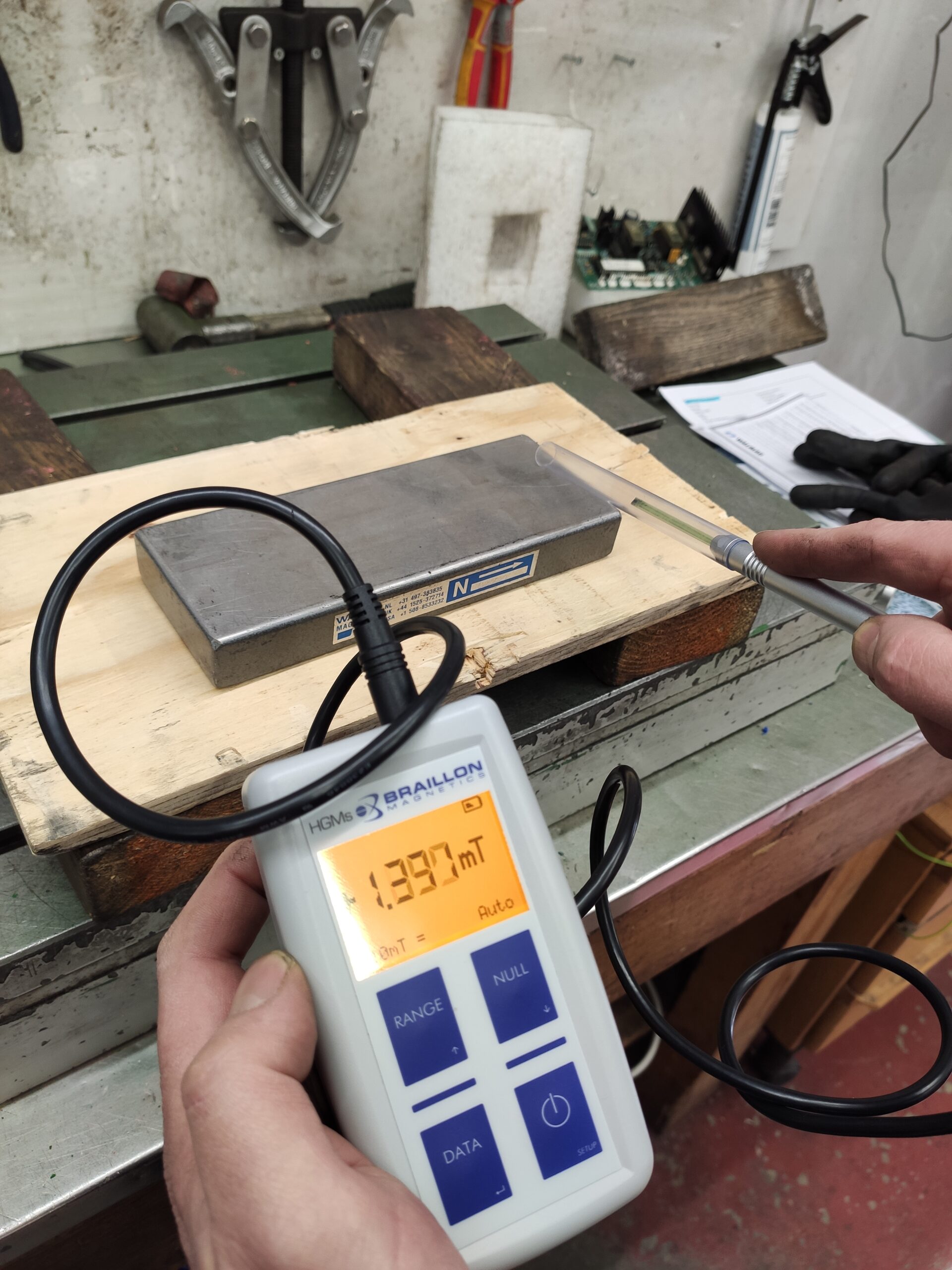

Measurement of residual magnetism in machined workpieces.
Measurement of magnetic flux in magnetism-applied products.
Measurement of magnetic flux of motors.
Measurement of properties of magnetic materials.
