Industrial Oil Mist Collectors

Oil Mist Collectors

Description

Intended Use

Introducing a new and innovative line of oil mist collectors for machine tools. Specifically developed for the elimination of mist, vapour, smoke and odours typical of wet machining operations these mechanical filters (CE marked) can also be employed in mixed application (wet/dry) and for EDM machines.

Features

With 5 sizes, ranging from 250 to 2000 m3/h, this line is characterised by a high level of reliability, sophisticated design and compact dimensions nevertheless including the following filtration stages:
1st Stage – Initial Pre-Filtration
A special cartridge, composed of 3 different stages (one of them washable) with progressive filtration levels grants a 92% efficiency level. It’s main characteristics are the high capability of accumulating particles and the slow and efficient draining effect.
2nd Stage – Intermediate Centrifugal
A special impeller ensures the centrifugal effect that enables the continuous discharge of re-condensed particles.
3rd Stage – Final Filtration
Extended filtration area.
Made of fibreglass, provides an average filtration efficiency above 99% (measured accordingly to AFNOR NFX 44-060 norm). Clogging is monitored by a pressure gauge that clearly indicates when the cartridge must be replaced.
For special applications there is the possibility to install an additional filtration module that perfectly fits on the unit. The module can either contain an absolute Hepa H13 (99.95% MPPS according to EN 1822) filter for the elimination of dry smoke or activated carbon cells for the elimination of odours.

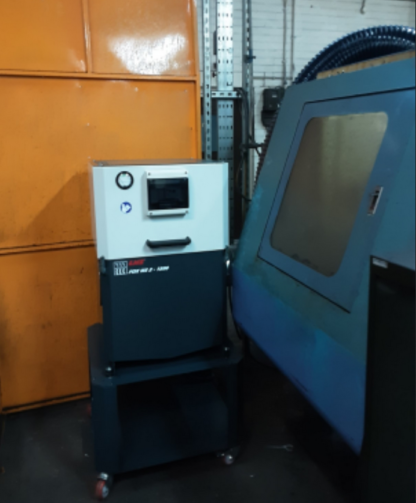

Applications





Dimensions (mm) A B C D E ø F ø G H I L N1 x N2 x ø M
WS 2   250 378 477 583 425 242 99 25 68 420 102 332 x 382 x 9
WS 2   500 408 515 652 460 276 124 25 67 450 120 363 x 395 x 9
WS 2 1000 525 600 801 543 362 149 25 60 567 135 478 x 478 x 9
WS 2 1500 600 673 908 617 396 198 25 59 640 176 552 x 552 x 9
WS 2 2000 663 737 994 680 437 198 25 59 703 181 615 x 615 x 9









Technical specifications WS 2  250* WS 2  500* WS 2  1000 WS 2  1500 WS 2  2000
50 Hz 50 Hz 50 Hz 50 Hz 50 Hz
Air flow [m3/h] 240 470 950 1450 1800
Static pressure

Motor

[Pa] 470 610 950 1260 1720
[kW] 0.24 0.37 0.75 1.5 2.2
Weight [kg] 28 35 55 75 85
Sound level [dB(A)] 62 65 71 74 76

*Also available in vertical aspiration.

All units painted in RAL 7035/7016 (special colours available upon request)
