MagJigs

Description

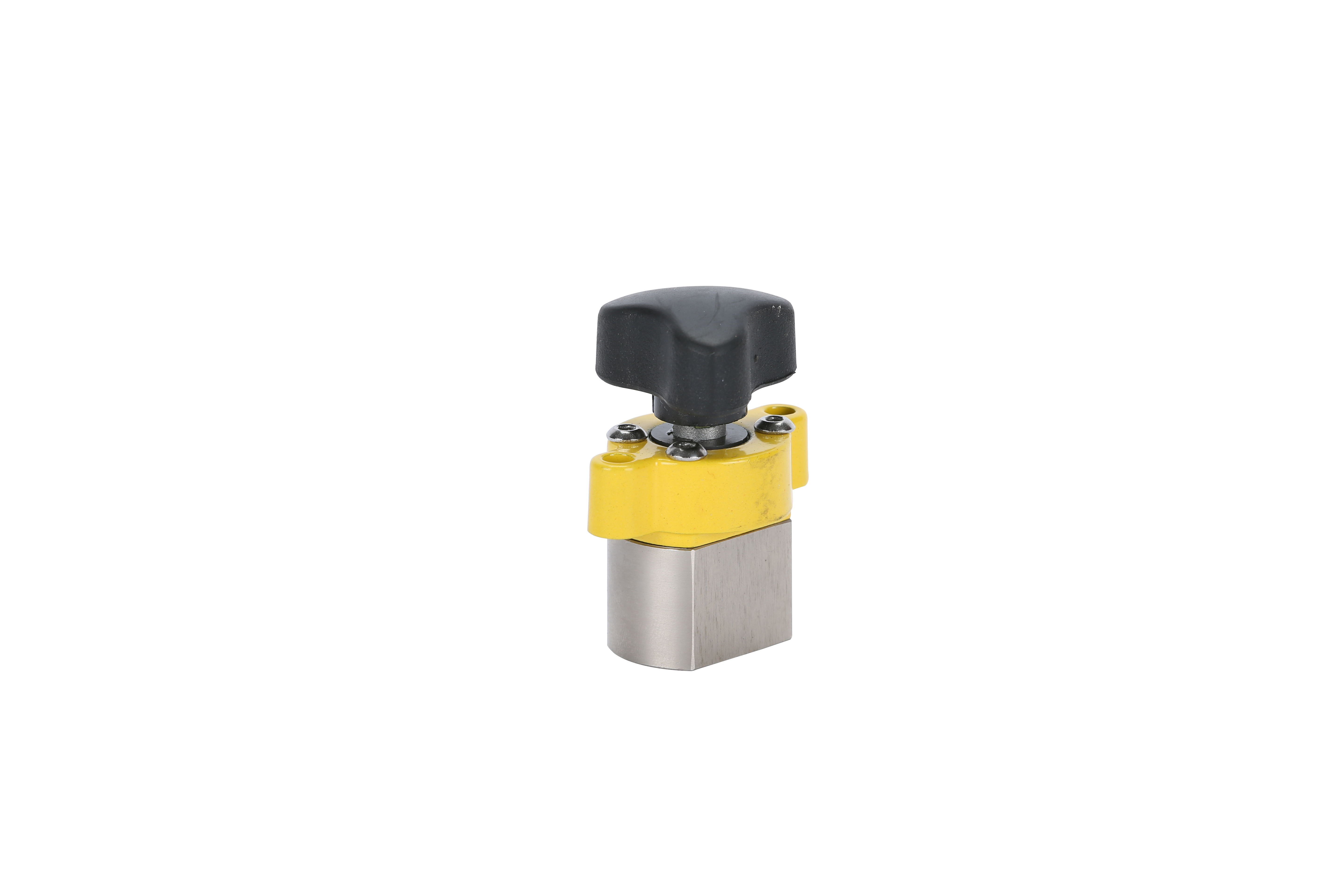

MagJigs

MagJigs are ideal for downward pressure clamping and come with a ¾ Inch standoff for flush mount. Simply drill a hole in the fixturing material and place the clamp in.

The MagJigs come with screw holes so you can secure the jig in the fixture.

We recommend at least two MagJigs per fixture to minimize slippage.

  • High Heat Available Upon Request
235 150 95 60 60 Keychain
Magnet Strength 106 kg 68 kg 43 kg 27 kg 27 kg
Height 78.3 mm 52.1 mm 46.6 mm 49.1 mm 44.1 mm
Width 60 mm 44 mm 34 mm 26.8 mm 26.8 mm
Length 88 mm 67 mm 57 mm 39.5 mm 39.3 mm
Weight 0.5 kg 0.2 kg 0.1 kg 0.1 kg 0.1 kg
