BUX NEO RangeNEO150
Description
The only Magnet to safely lift thin plate. NEO150 = 2mm
Intended Use
Permanent Lifting Magnet, suitable for flat or round material.
Features
- Neodymium Magnetic System
- Safe switching system
- Robust and Solid Construction
- Increased air gap capability
- next day delivery.
- UK service and repair and re-calibration available.

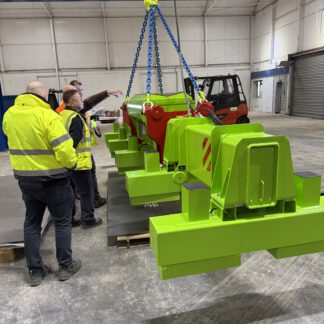

- Training also available.
Applications

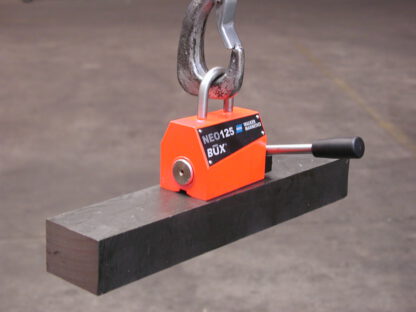

Permanent Lifting Magnets can be used for a wide range of applications. This Range can lift up to 2000 kgs. This product the NEO150 has a recommended maximum lifting capacity: 150 kg flat / 65kg round material. The BUX Neo range is ideal for loading and unloading machine tools, handling bars and profiles in the warehouse and handling plates, blocks, bars, pipe and profiles in the workshop. It is manufactured using a neodymium magnetic system, with a safe spring loaded system and strong and robust design. These Magnets can be modified to offer special design solutions to suit your application.
These Magnets are manufactured in Europe. We hold a large stock of this range so next day delivery is available as well as service and repair and spare parts. These magnets should be tested and re-certificated annually which can be done in our Leighton Buzzard service department or on site. We can also offer on site training for your operators.
| Nominal lifting capacity * | Diameter min./max. | 50 / 100 mm | |
| Flat material | 150 kg | Length x width | 95 x 60 mm |
| Round material | 65 kg | Height to the crane hook | 110 mm |
| Minimum thickness | 2 mm | Weight | 5 kg |
* Nominal lifting capacity. Maximum weight for steel parts S235JR with smooth contact surfaces and of sufficient size and thickness.
The lifting capacity varies according to the type of material, the thickness, the size and the quality of the surface.
