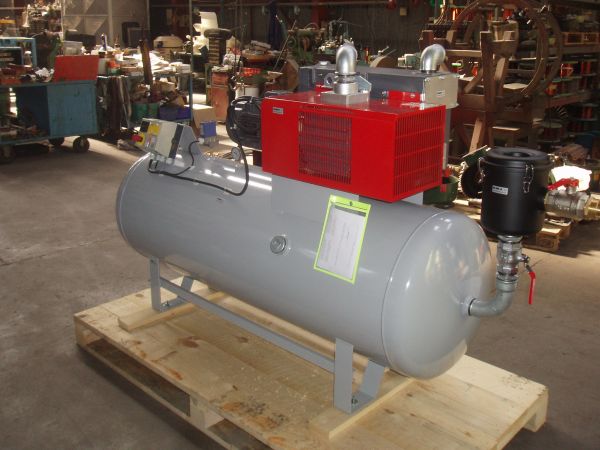

Vacuum unit with vacuum regulation type VAL

Description

Vacuum unit with vacuum regulation type VAL
With ON/OFF switch, Heavy duty construction, Long service life, Safe and Effective
. oil-lubricated rotary vane pumps
. Starting box (to CE standards)
. Vacuum switch-manually adjustable vacuum threshold value
. Vacuum gauge
. Air filter and strainer
. Air ballasting and non-return valve
. Capacities from 100 m³ to 300 m³
. Vacuum storage tank (300 & 500 litres) to compensate for possible leakage
The pump will start only when the vacuum threshold value is at the minimum position (this minimum value depends on the clamping force needed for your machining).
Use :Grinding  / Milling / Machining / Planning
Voltage :400 VAC

Product Weight A B C D E F G H
30.10.100.400 210 1880 630 1135 995 300 1″ 100M3/H 2.2KW
30.10.150.400 260 2150 770 1300 1200 360 2″ 150M3/H 3KW
30.10.200.400 280 2150 770 1300 1200 360 2″ 200M3/H 4KW
30.10.300.400 370 2150 755 1360 1200 360 2″ 300M3/H 5.5KW
