Description

MagWheels

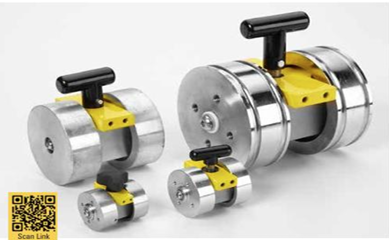

The Magswitch MagWheel offers powerful connection for drive units on any ferrous surface, enabling flat, vertical or inverse travel.  This unique tool has magnetic rotating elements with potential to automate.  The Magnetic flux path through the wheels means climbing, carrying and driving anywhere above or below a magnetic surface.

Applications Include:

  • Positioning and guiding
  • Sheet feeding
  • Pipe Handling
  • Fitting and fabrication
  • OEM automation and fixturing applications



95 150 600 1000
Magnet Strength 17 kg 29 kg 133 kg 239 kg
Height 55.7 mm 71.2 mm 121.7 mm 164.4 mm
Width 41 mm 52 mm 92 mm 127 mm
Length 56.2 mm 69.2 mm 101.1 mm 180.04mm
Weight 0.3 kg 1 kg 3 kg 9 kg
