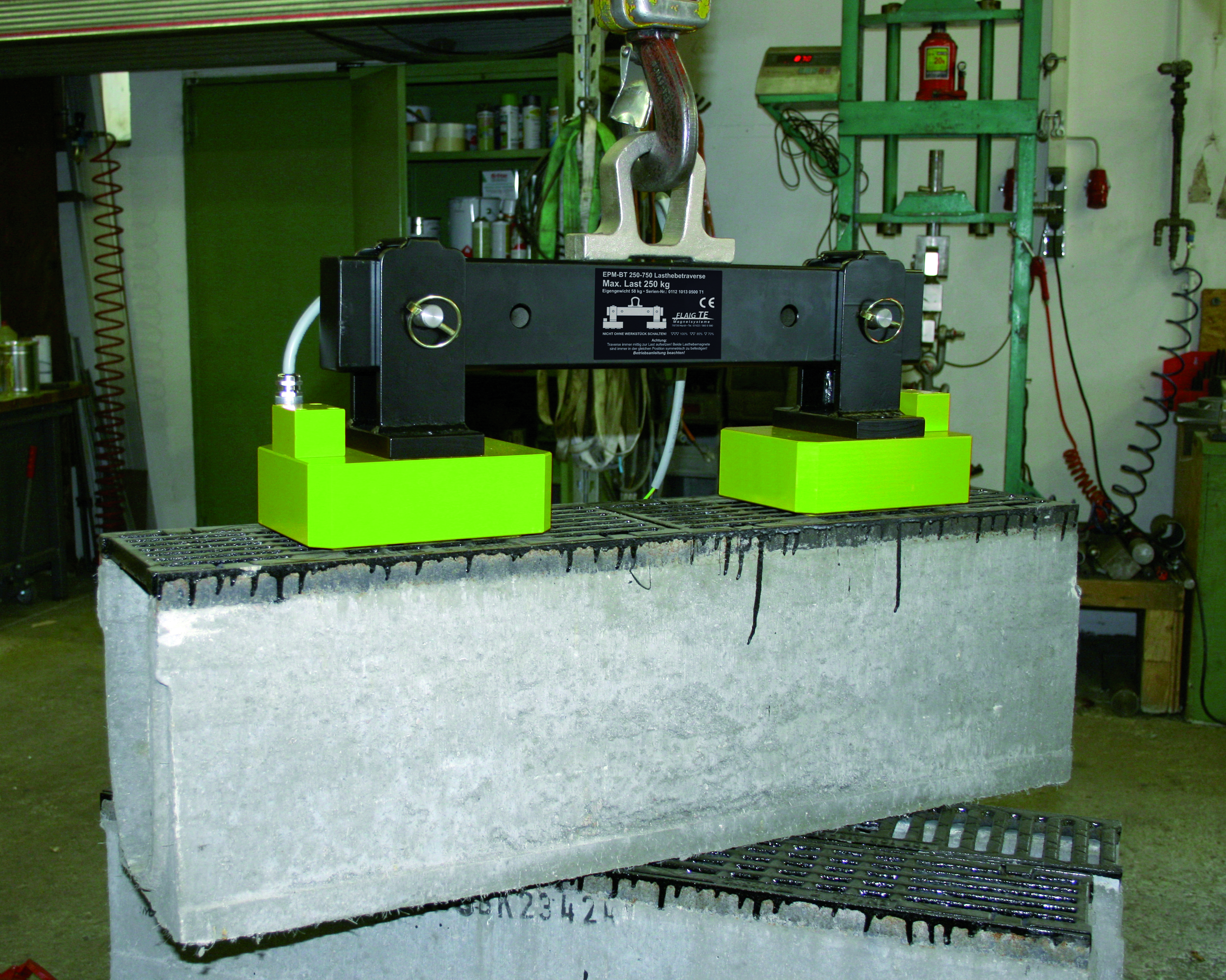

FXE- T Electro-Permanent Magnetic Truss

Description

FXE-T Electro-Permanent Lifting Magnets are the professional solution.

They are very robust and designed for continuous use.  The FXE T 2500/50 and 4000/80 Electro-permanent Lifting magnet trusses in a compact design with on board control technology are designed for the frequent transfer of larger formats.  They can like the FXE lifting magnets be operated directly on the mains voltage and are therefore installed quickly and ready to use.  The unit is controlled directly on the device or optionally with a remote control.

The Pole structure 50 and 80 for the larger model.

The Truss range is available from T2500/50 and T4000/80 it can be customised to include, spiral cables, remote control – contact us for more information on the accessories available for this range.

FXE-T 2500/50:

Max Load capacity at sheets

Material / Wall thickness Max Load (kg) Max Dimensions L (max) Max Dimensions W (max)
From 4mm 500 kg 4000 1500
From 6mm 750 kg 4000 1500
From 8mm 1250 kg 4000 2000
From 10mm 1750 kg 4000 2000
From 15mm 2550 kg 4000 2500

FXE-T 4000/80:

Max Load capacity at sheets

Material / Wall thickness Max Load (kg) Max Dimensions L (max) Max Dimensions W (max)
From 4mm 350 kg 4000 1500
From 6mm 700 kg 4000 1500
From 8mm 1000 kg 4000 2000
From 10mm 1250 kg 4000 2000
From 15mm 2500 kg 5000 2500
From 25mm 4000 kg 5000 2500



Model Max Load capacity (kg) L (mm) W (mm) H (mm) Number of Poles Pole Structure Breakaway (kN) Weight (kg)
FXE-T2500/50 2500 kg 1000 630 380 2 x 18 50 96 138
FXE-T4000/80 4000 kg 1200 500 380 2 x 10 80 170 175
