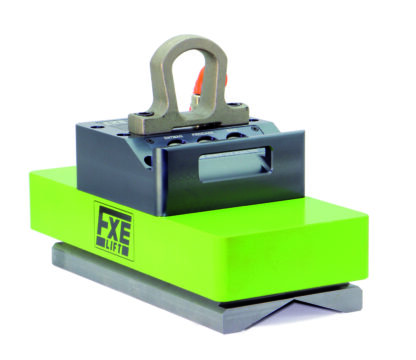

FXE-R Electro-Permanent Lifting Magnet

Description

FXE-R Electro-Permanent Magnet

The FXE R lifting magnets can pick up material or both round and flat material.  The FXE R uses the FXE-based models with pole shoes, which can raise the customised diameter bandwidths individually or in layers.

Available as the FXE-R 2400/100, other sizes available on request



Model Max Load capacity          (kg) Flat Max Load capacity     (kg) Round L (mm) W (mm) H (mm) Number of Poles Pole Structure Breakaway (kN) Weight (kg)
FXE-R2400/100 2400 kg Ø120-420 mm 1200 kg 536 296 370 8 100 80 158
