Description

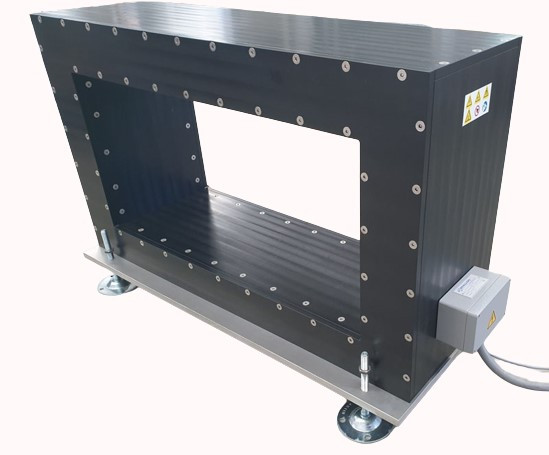

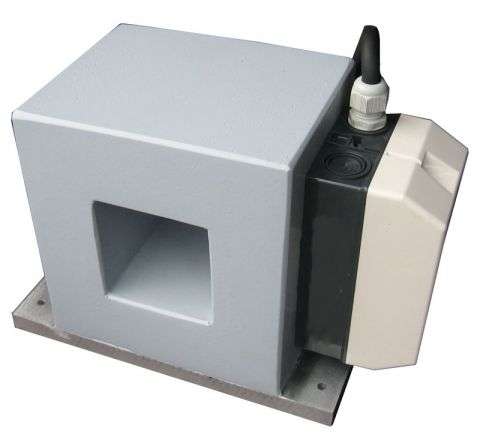

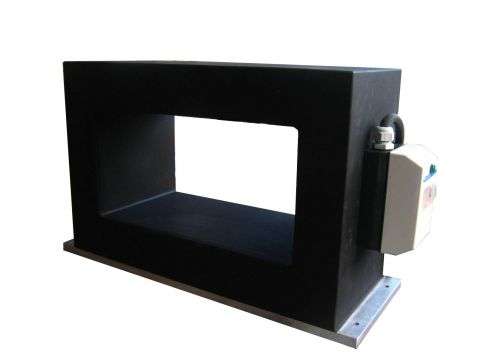

Tunnel Demagnetizer Type DT
- Heavy duty construction
- Waterproof construction
- Designed for continuous operation cycle
- Coil sealed in a high-performance epoxy resin IP54
- Reinforced system

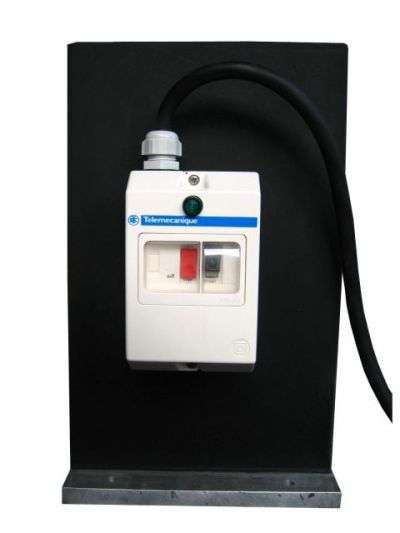

- ON/OFF switch with pilot lamp
- Thermic protection
- 3 metres of cable
- 100% duty cycle
- 230/7400 VAC Voltage
It is necessary that the workpiece be moved through the alternative field at a slow and constant speed (recommended 0.2m/sec). At the end of the operation, the part must be moved away as far as possible from the unit (40 to 60cm), in order to avoid incomplete demagnetization.
Options:
- Other voltage
- Other sizes on request
- Low frequency generator for demagnetization of difficult workpieces
- Automatic demagnetization systems with conveyor belt or rollers
