90 Degree Angles

Description

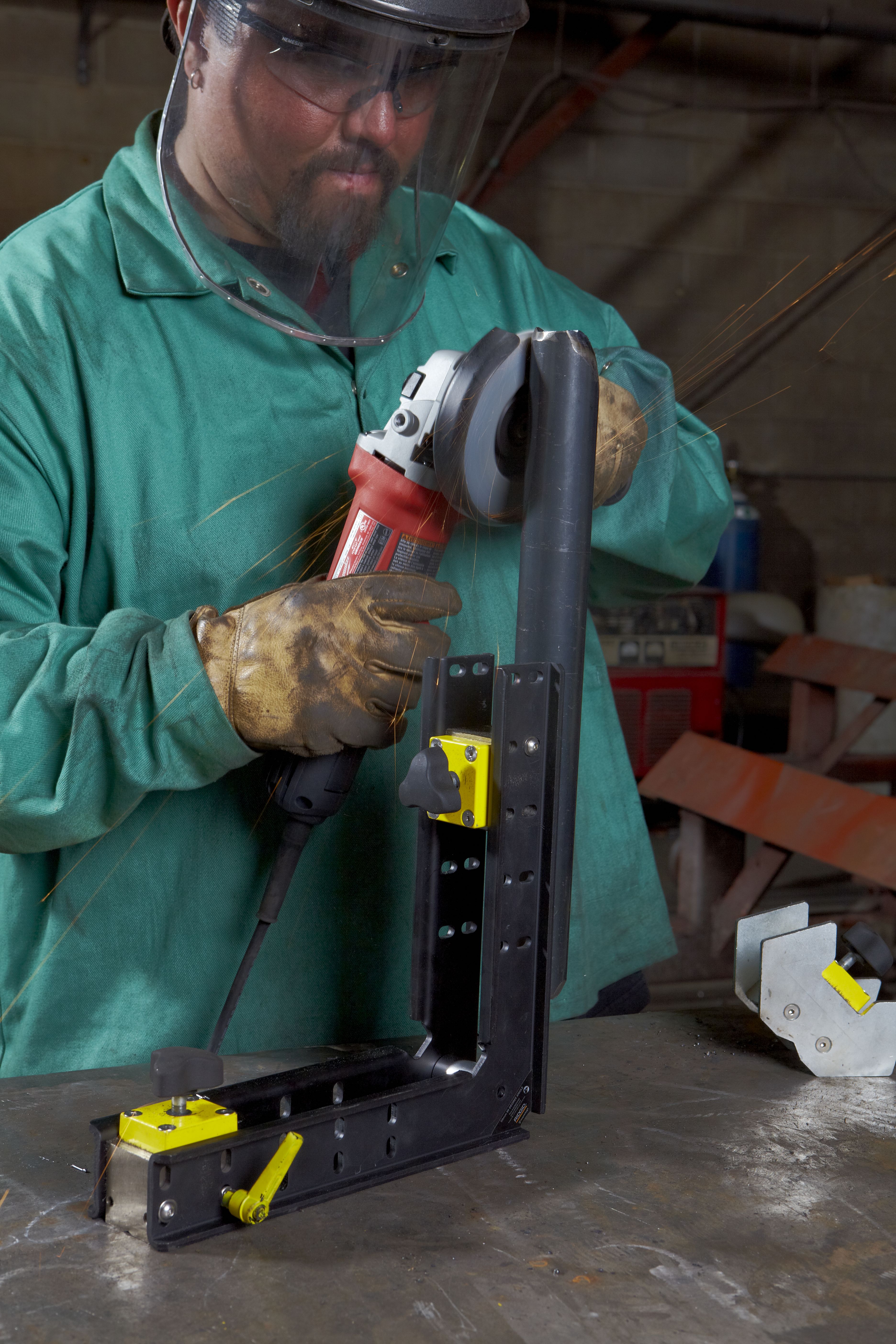

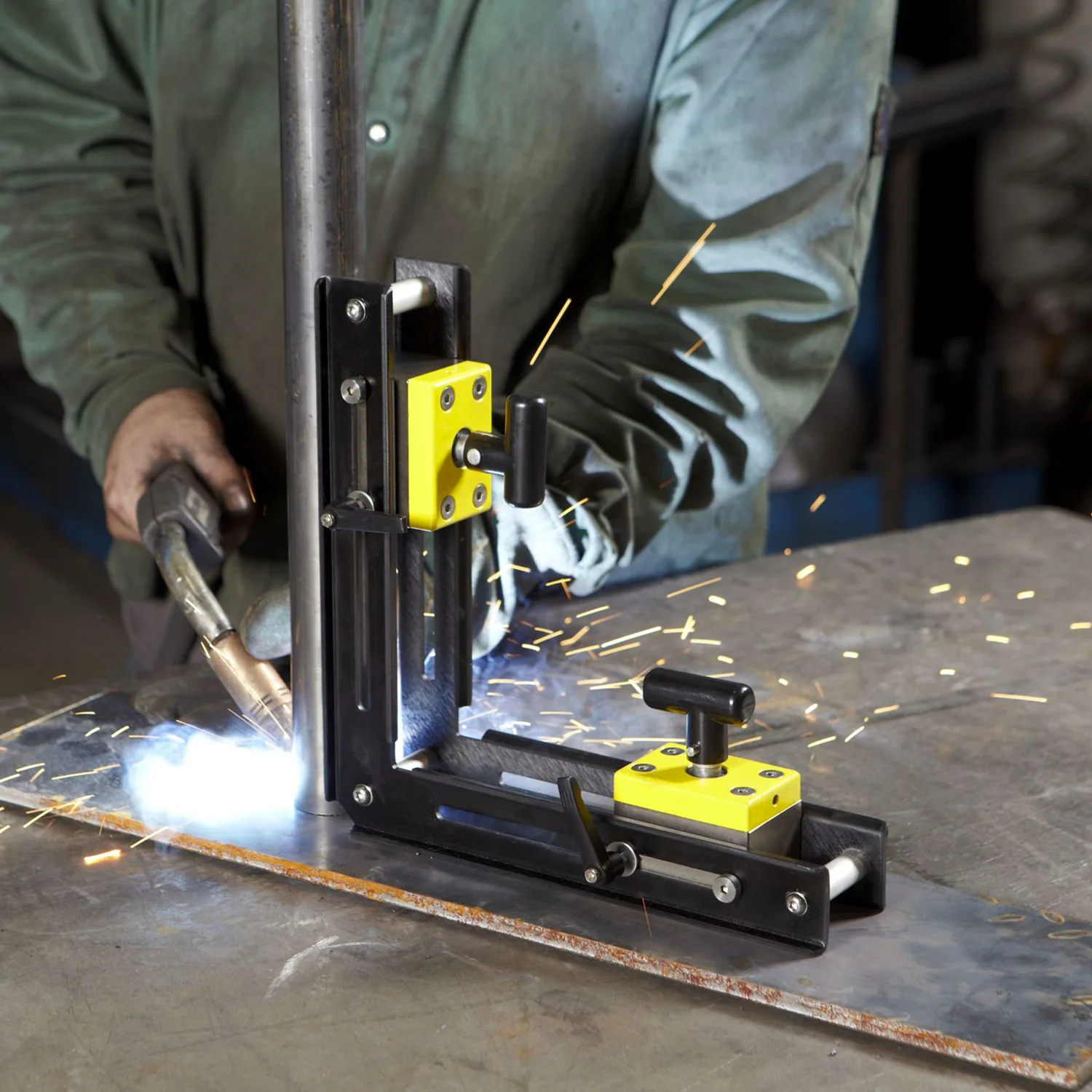

MagSquares can be re-positioned or reversed on each axis.

  • Fixed 90° welding angle
  • Incredible power and precision control
  • Adjustable – slide up or down on each axis
  • Reversible – inside or outside
  • Size for any job – Big or small
  • Use additional MagSquares for increased strength
  • Magnets can be positioned away from joint to prevent arc blow
  • New 90 Degree Angle 1000 for heavy fabrication work
165 400 600 1000
Magnet Strength 68 kg 181 kg 272 kg 454 kg
Height 205 mm 262.9 mm 288 mm 287 mm
Width 47 mm 133.2 mm 104 mm 145 mm
Length 205 mm 262.9 mm 288 mm 474 mm
Weight 0.8 kg 2.8 kg 3.7 kg 9.6 kg
